Yamaha R15 V3 water damaged meter issues are extremely common, especially when water enters through weak buttons or top covers. At Gadi Garage, we regularly repair such meters, but this particular case was one of the most severe we have handled.
A customer brought an R15 V3 meter that was completely dead. The motherboard was burnt, the backlight was gone, and moisture had spread across the display. All of this damage started from one small hole in the trip button area.
Below is the full story and complete restoration process.
Table of Contents
How the Yamaha R15 V3 Water-Damaged Meter Problem Started
The customer visited our workshop and asked a simple question:
“Bro… why is the display completely off?
The bike is running normally but the meter is totally dead.”
He had washed the bike the previous day, and after that, the meter began flickering. By the next morning, it stopped working completely.
After opening the unit, we found the root cause:
Water had entered directly through the damaged trip button rubber.
This small gap allowed water to flow straight into the internal circuits.
Early Warning Signs of Water Damage (Ignored by the Customer)
Before the Yamaha R15 V3 water damaged meter became fully dead, it showed clear signs:
- Display dimming
- Backlight flickering
- Moisture spots inside
- Display turning reddish or dark
- Meter going off randomly
He assumed the issue would “fix itself,” but water damage only spreads further.

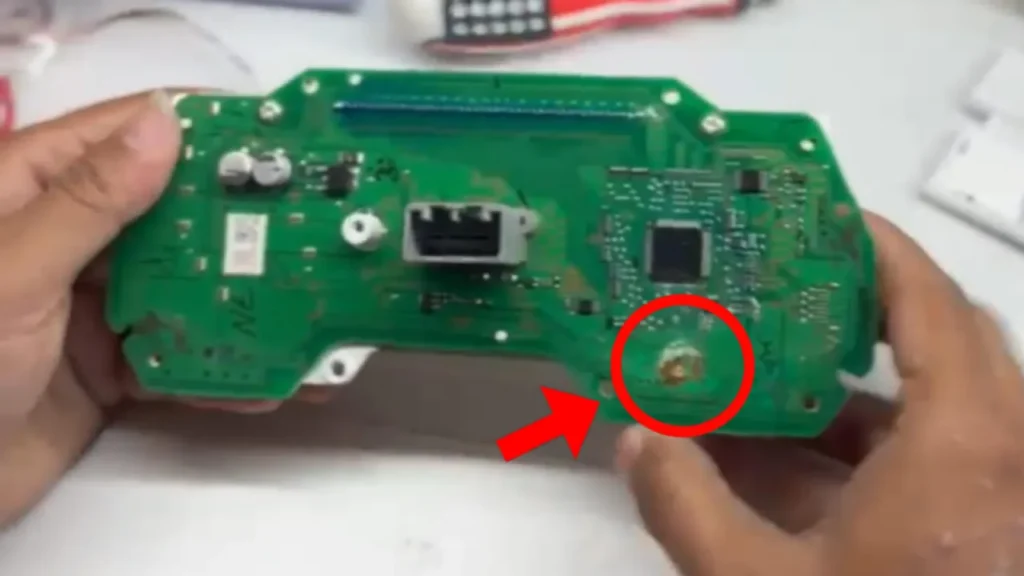

Full Inspection – What We Found Inside the R15 V3 Meter
Once we opened the meter, the customer was shocked.
Inside, we saw:
- Rust on the motherboard
- Water trails
- Burnt components
- Short-circuited power lines
- Corroded contact points
It was clear that the motherboard had suffered serious damage.
He asked, “Can this be saved?”
We answered, “Yes, we can restore it fully.”
How Gadi Garage Restored the Yamaha R15 V3 Water-Damaged Meter
1. Complete Disassembly and Moisture Cleaning
We opened the meter safely, removed trapped moisture, rust particles, and all internal dirt.
2. Motherboard Short-Circuit Repair
This was the most difficult stage.
We repaired:
- Burnt tracks
- Damaged connections
- Weak joints
- Corroded components
- Power-line failures
After this, the motherboard started responding again.

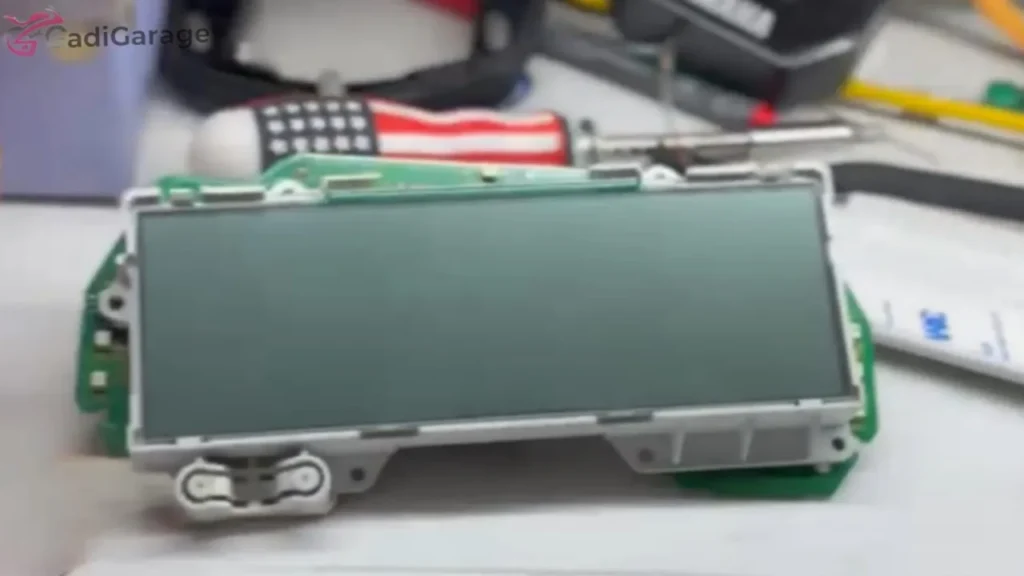

3. Restoring the Display Back to Life
Once the board was stable, we revived the display.
The moment the screen lit up again, the customer’s tension disappeared. He was relieved that he didn’t have to buy a new meter.
4. Installing a Brand-New Top Cover
We explained that the old top cover was the main reason for water entry.
He immediately requested a replacement.
The new top cover provided:
- Strong protection
- Proper sealing
- Long life
- Zero leakage points
5. Waterproofing and Final Testing
We waterproofed the entire unit and tested:
- Speed reading
- RPM function
- Fuel bar
- Backlight
- All buttons
- Riding vibrations
Everything worked perfectly.

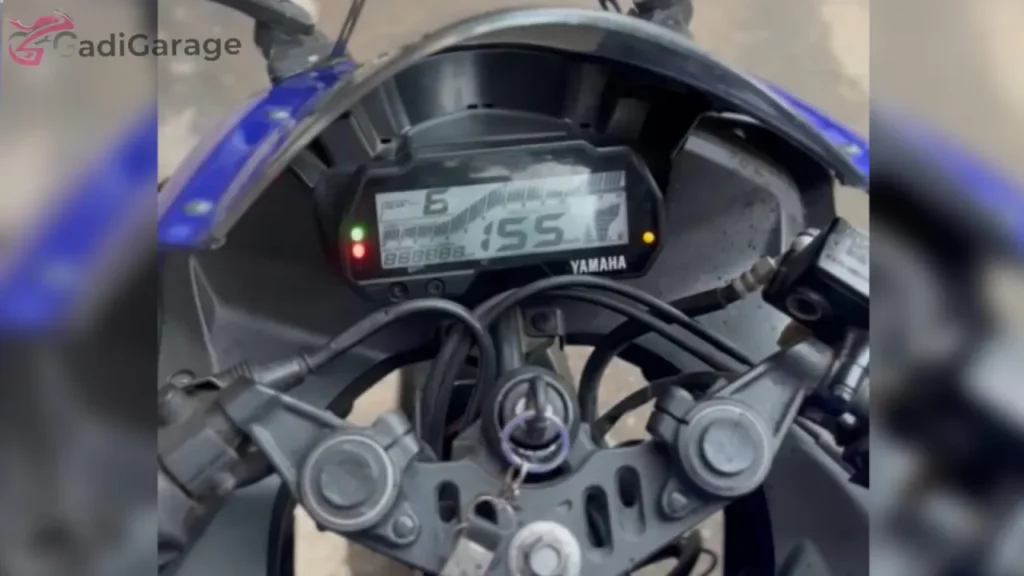

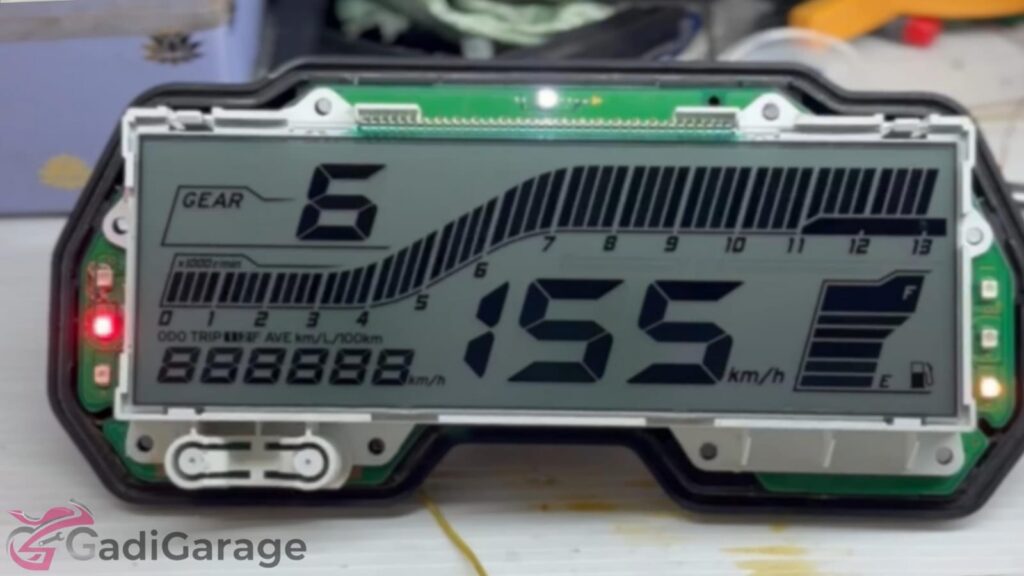

Final Result – A Dead Yamaha R15 V3 Meter Restored Like New
After the restoration, the meter was:
- Bright
- Clear
- Fully working
- Smooth and stable
- Completely waterproof
The customer was extremely happy with the final result.
Why Yamaha R15 V3 Meters Fail from Water Entry
- Weak trip button rubber
- Ageing top cover
- High-pressure water during bike wash
- Riding in heavy rain
- Sun heat weakening rubber seals
Even a few drops of water can destroy the motherboard.
Need Yamaha R15 V3 Water-Damaged Meter Repair?
At Gadi Garage, we restore:
- Water-damaged meters
- Burnt motherboards
- Dead displays
- Trip button water-entry issues
- Full digital meter clusters
You can visit our workshop or send the meter through courier.
Chennai Workshop
All India Courier Repair Available
WhatsApp number: 98409 64204
Gadi Garage – India’s Trusted Digital Speedometer Specialists
